Product Summary
The PIC16F884-I/PT is an 8 bit CMOS microcontroller. The PIC16F884-I/PT has two timers that offer necessary delays on power-up. One is the Oscillator Start-up Timer (OST), intended to keep the chip in Reset until the crystal oscillator is stable. The other is the Power-up Timer (PWRT), which provides a fixed delay of 64 ms (nominal) on power-up only, designed to keep the part in Reset while the power supply stabilizes. There is also circuitry to reset the PIC16F884-I/PT if a brown-out occurs, which can use the Powerup Timer to provide at least a 64 ms Reset. With these three functions-on-chip, most applications need no external Reset circuitry.
Parametrics
PIC16F884-I/PT absolute maximum ratings: (1)Ambient temperature under bias: －40° to +125°C; (2)Storage temperature : －65°C to +150°C; (3)Voltage on VDD with respect to VSS : －0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss : －0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS : －0.3V to (VDD + 0.3V); (6)Total power dissipation(1): 800 mW; (7)Maximum current out of VSS pin : 300 mA; (8)Maximum current into VDD pin : 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ± 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin : 25 mA.
Features
PIC16F884-I/PT features: (1)Capture, Compare, PWM module: 16－bit Capture, max. resolution 12.5 ns, 16－bit Compare, max. resolution 200 ns, 10－bit PWM, max. frequency 20 kHz; (2)Enhanced USART module: Supports RS－485, RS－232, and LIN 2.0, Auto－Baud Detect, Auto－Wake－Up on Start bit; (3)In－Circuit Serial ProgrammingTM (ICSPTM)via two pins; (4)Master Synchronous Serial Port (MSSP)module supporting 3－wire SPI (all 4 modes)and I2CTM Master and Slave Modes with I2C address mask.

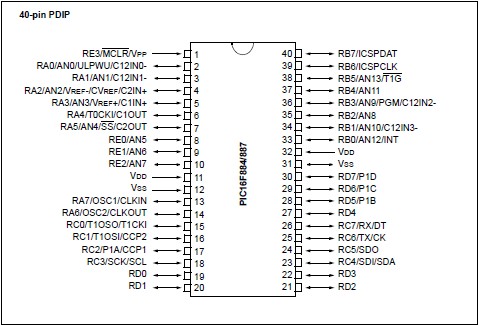

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PIC16F884-I/PT |
Microchip Technology |
8-bit Microcontrollers (MCU) 7KB Flash 256 RAM 36 I/O |
Data Sheet |
|
|
||||||||||||
